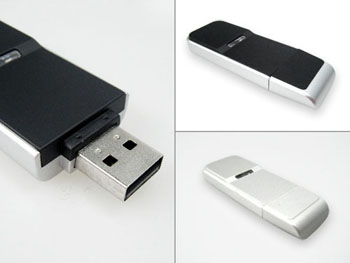

     GT-730F(L)
     Home > Products > GPS Receiver > GT-730F(L)



• Fast Acquisition high-Sensitivity 65 Channels USB GPS Dongle With Data Logger Functionality

The GT-730F(L) is optimized for good performance and low power consumption. Its 65 parallel channels and Venus 5 search bins provide short start-up time and fast signal acquisition. GT-730F(L) offers good navigation performance even in low signal area liked among the urban high rises. GT-730F(L) is a GPS Receiver that can communicate with other electronic devices by USB interface. With external power supply, GT-730F(L) can also work as a Data Logger to record trip information with programmable software.

Features:

◊ Acquire and track 65 satellites simultaneously
◊ Skytraq Venus 621 GPS chipset simultaneous time-frequency search bins
◊ Ultra fast signal acquisition and TTFF speed
◊ Support A-GPS function
◊ SBAS (WAAS, EGNOS) support
◊ 2M Bytes flash memory for data logging, with 16 bytes binary data per record that stores up to 256,000 data records
◊ Log data can be exported to Google Earth, gpx file format
◊ Logging data interval programmable: by time or distance
◊ USB version 2.0 interface
◊ Easy-plug-in Notebook
◊ Easy-installation USB driver
◊ Super mini size:73.5x27x10 mm











Specification :

◊ Receiver Type 65 parallel channels, L1 C/A code
◊ Sensitivity -155dBm Re-acquisition
     -160dBm tracking
     -147dBm Cold Start
◊ Cold start < 40 seconds at 135dBm
◊ Hot start < 1sec under open sky

◊ Update Rate 1Hz standard
◊ Dynamics 4G (39.2m/sec2)

◊ Accuracy 5m CEP
◊ SBAS (WAAS/EGNOS) capable
◊ Autonomous, MS-assisted, MS-based modes
◊ Velocity 0.1m/sec
◊ Startup Time < 1sec hot start
(average) < 30sec cold start
◊ Signal Reacquisition 1s
◊ Operational Limits Altitude < 18,000m or velocity < 515m/s
(COCOM limit, either may be exceeded but not both)
◊ Protocol NMEA-0183 V3.01
◊ 38400 baud, 8, N, 1
◊ Datum Default WGS-84
◊ User definable
◊ Input Voltage 3.8~8V DC
◊ Power Consumption < 42mA (1Hz standard version)
◊ Dimension 73.5mm L x 27mm W x 10mm H
◊ Weight: 18g
◊ Operating Temperature -40oC ~ +85oC
◊ Humidity 5% ~ 95%

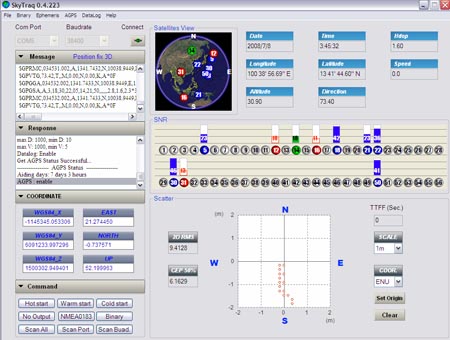

GPS Information with AGPS feature through internet

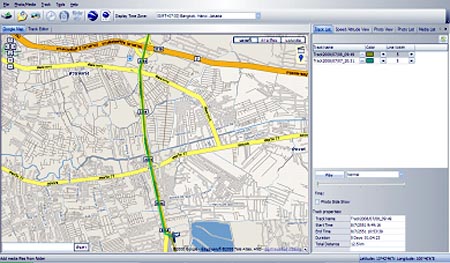

Tracking Information showing on Map

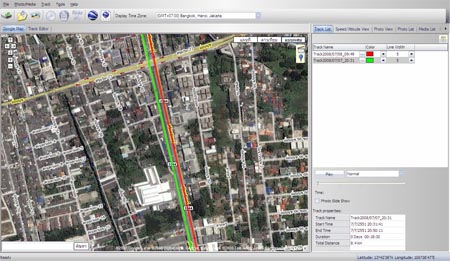

Tracking Information showing on Satellite view




Related Documents

Data Sheet
User Manual
Product Brief _Th
AGPS User Manual
Introduction Data Logger software

Software Downloads
Driver
GPS Photo Tagger
GpsView
